PULTRUDEDPROFILE

View/instance

Type

Dimension(mm)

Weight(Kg/m)

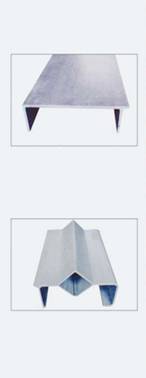

Kick-plate

A×B×T

M2

100×13×3.2 M-shape

1.10

M3

100×16×5.0 M-shape

1.30

M4

148×12×4 M-shape

1.27

W1

100×19×5.0 W-shape

1.36

W2

100×15×3.2 W-shape

1.10

W3

150×15×3.2 W-shape

1.60

View/instance

Type

Dimension(mm)

Weight(Kg/m)

I-shape

A×B×T1×T2

IB32

15×32×6.4×4.0

0.51

IB38A

30×38×3.0×3.0

0.53

IB45A

45×9.0×180×12.0

5.40

IB50A

50×102×6.4×6.4

2.40

IB50B

50×102×8.0×8.0

3.00

IB76A

76×152×6.4×6.4

3.59

IB76B

76×152×9.5×9.5

5.32

IB102A

102×203×9.5×9.5

7.20

IB102B

102×203×12.7×12.7

9.50

IB120

120×240×12×12

10.50

IB127A

127×254×9.5×9.5

9.00

IB127B

127×254×12.7×12.7

11.90

IB127C

127×152×9.5×9.5

7.10

IB127D

127×152×12.7×12.7

9.20

IB152A

152×305×9.5×9.5

10.74

IB152B

152×305×12.7×12.7

14.30

View/instance

Type

Dimension(mm)

Weight(Kg/m)

H-shape

A×B×T1×T2

HB76

76×76×6.4×6.4

2.67

HB102A

102×102×6.4×6.4

3.59

HB102B

102×102×8.0×8.0

4.50

HB152A

152×152×6.4×6.4

5.43

HB152B

152×152×9.5×9.5

8.10

HB203A

203×203×9.5×9.5

10.80

HB203B

203×203×12.7×12.7

14.36

HB203C

203×203×6.4×6.4

7.50

HB254A

254×254×9.5×9.5

13.60

HB254B

254×254×12.7×12.7

18.04

HB305

305×305×12.7×12.7

21.50

View/instance

Type

Dimension(mm)

Weight(Kg/m)

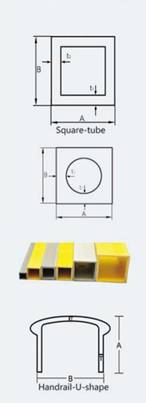

Square-tube

A×B×T1×T2

ST25A

25×25×3.2×3.2

0.53

ST25B

25×25×6.4×6.4

0.90

ST32A

32×32×3.2×3.2

0.70

ST32B

32×32×6.4×6.4

1.24

ST38A

38×38×3.2×3.2

0.85

ST38B

38×38×5.0×5.0

1.25

ST38C

38×38×6.4×6.4

1.54

ST44A

44×44×3.2×3.2

1.01

ST44B

44×44×6.4×6.4

1.83

ST50A

50×50×3.2×3.2

1.14

ST50B

50×50×3.5×3.5

1.24

ST50C

50×50×4.0×4.0

1.42

ST50D

50×50×5.0×5.0

1.74

ST50E

50×50×6.4×6.4

2.12

ST54A

54×54×3.2×3.2

1.24

ST54B

54×54×4.8×4.8

1.78

ST60A

60×60×5.0×5.0

2.10

ST64A

64×64×3.2×3.2

1.48

ST64B

64×64×4.4×4.4

1.97

ST64C

64×64×6.4×6.4

2.80

ST76A

76×76×3.2×3.2

1.77

ST76B

76×76×5.0×5.0

2.70

ST76C

76×76×6.4×6.4

3.39

ST76D

76×76×9.5×9.5

4.89

ST89A

89×89×6.4×6.4

3.95

ST100A

100×100×10×10

6.80

ST101A

101×101×3.2×3.2

2.38

ST101B

101×101×5.0×5.0

3.61

ST101C

101×101×6.4×6.4

4.61

ST101D

101×101×8.0×8.0

5.72

ST125A

125×125×6.4×6.4

5.90

ST152A

152×152×6.4×6.4

7.10

ST152B

152×152×9.5×9.5

10.4

ST152C

152×152×12.7×12.7

13.5

STR25

25×25×3.175×3.175

0.70

A×B×T

62×59×4.5

1.50

62×60×5.0

1.70

A×B×T1×T2

STH50

50×50×6.4×5.0

3.0

View/instance

Type

Dimension(mm)

Weight(Kg/m)

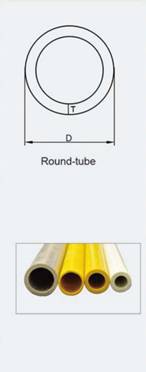

Round-tube

D×T

RT25

25×3.2

0.44

RT26A

26×3.0

0.42

RT26B

26×4.8

0.63

RT32A

32×3.2

0.55

RT32B

32×5.0

0.81

RT32C

32×6.0

0.96

RT38A

38×3.2

0.65

RT38B

38×4.0

0.81

RT38C

38×5.0

1.00

RT38D

38×6.4

1.18

RT41

41×4.5

0.98

RT42A

42×3.2

0.70

RT42B

42×5.0

1.11

RT42C

42×6.4

1.45

RT48

48×6.4

1.58

RT50A

50×3.2

0.84

RT50B

50×4.0

1.10

RT50C

50×5.0

1.34

RT50D

50×6.4

1.67

RT50E

50×3.5

0.96

RT50.8A

50.8×6.4

1.70

RT50.8B

50.8×3.2

0.86

RT64A

64×3.5

1.26

RT64B

64×6.4

2.38

RT75

75×4.2

1.80

RT76

76×6.4

2.64

RT89A

89×3.2

1.54

RT89B

89×5.0

2.51

RT89C

89×6.4

3.13

RT99

99×5.0

2.81

RT101A

101×4.3

2.60

RT101B

101×5.0

2.90

RT101C

101×6.4

3.62

RT114A

114×3.2

2.12

RT114B

114×5.0

3.25

RT114C

114×6.4

4.11

RT114D

114×9.5

5.93

RT139A

139×25.0

18.0

RT140A

140×4.0

3.40

RT150A

150×3.2

2.81

RT150B

150×5.0

4.35

RT150C

150×6.4

5.50

RT150D

150×9.5

8.00

View/instance

Type

Dimension(mm)

Weight(Kg/m)

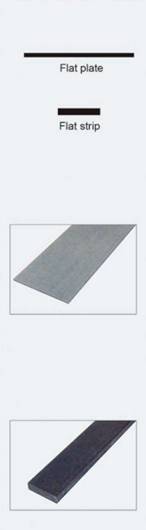

Flat plate

Thickness×width

FP32A

3.2×1000

6.18

FP32B

3.2×1220

7.42

FP40A

4.0×800

6.2

FP40B

4.0×1200

9.19

FP48A

4.8×1000

9.3

FP50A

5.0×440

4.25

FP50B

5.0×1220

11.8

FP64A

6.4×1220

14.84

FP95A

9.5×1220

22.02

FP127A

12.7V1220

29.44

FP160A

16×1220

37.2

FP190A

19×1220

44.1

FP254A

25.4×1220

59.0

Flat strip

Thickness×width

FS19A

19×6.4

0.25

FS19B

19×22

0.85

FS24A

24×3.4

0.15

FS25A

25×8.0

0.40

FS30A

30×3.0

0.18

FS30B

30×6.4

0.37

FS35A

35×8.0

0.54

FS38A

38×5.0

0.37

FS38B

38×8.0

0.60

FS38C

38×15.0

1.12

FS40A

40×8.0

0.62

FS40B

40×10.0

0.79

FS46A

46×6.4

0.58

FS50A

50×2.0

0.25

FS50B

50×4.0

0.38

FS50C

50×6.0

0.59

FS50D

50×8.0

0.76

FS50E

50×15.0

1.43

FS50F

50×25.0

2.5

FS60A

60×2.0

0.24

FS60B

60×4.0

0.48

FS64A

64×4.8

0.60

FS64B

64×15

1.81

FS70A

70×4.0

0.55

FS76A

76×9.5

1.42

FS76B

76×14

2.05

FS100A

100×10.0

1.95

FS100B

100×25

4.85

FS102A

102×3.2

0.63

FS102B

102×5.0

0.97

FS102C

102×6.4

1.30

FS120A

120×10.0

2.4

FS127A

127×6.4

1.54

FS152A

152×10.0

2.92

FS152B

152×20.0

5.90

FS190A

190×15.0

5.42

FS250A

250×12.0

5.7

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Flat strip

Thickness×width

FS250A

250×12.0

5.7

FS280A

280×10.0

5.32

FS300A

300×24.0

14.4

FS355A

255×5.0

3.5

FS555A

355×5.0

5.40

FS751A

751×5.0

7.20

FS762A

762×9.5

13.8

FS50A(chamfered edge)

50×3.2

0.29

FS60A(chamfered edge)

60×3.2

0.36

FS70(chamfered edge)

70×4.0

0.54

FS90A(chamfered edge)

90×3.2

0.54

FS100(chamfered edge)

100×3.2

0.60

FS120(chamfered edge)

120×3.0

0.70

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Corrugated Round Tube

D₁×D₂×T

CT32A

19×32×6.4

1.11

CT32B

25×32×3.5

0.66

CT32C

22×32×5.0

0.99

CT34A

19×34×7.5

1.30

CT42

29×42×6.4

1.35

CT45A

28×45×8.5

1.86

CT45B

32×45×6.4

1.10

CT51

51×36×7.0

1.75

CT90A

71×90×9.5

5.70

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Y-shape

A×B×T

25×38×6.4

1.4

38×38×6.4

1.6

50×38×6.4

1.7

T-shape

A×T1×B×T2

54×6.0×31×6.0

0.89

54×5.0×45×6.0

1.03

54×6.0×45×6.0

1.1

60×6.0×46×6.0

1.30

78×6.4×44.5×6.0

1.38

View/instance

Type

Dimension(mm)

Weight(Kg/m)

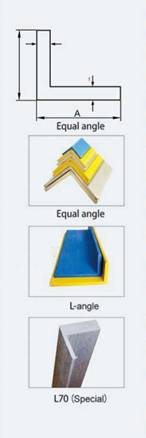

Equal angle

A×B×T₁×T₂

EL25A

25×25×3.2×3.2

0.33

EL25B

25×25×6.4×6.4

0.56

EL30A

30×30×4.0(75°)

0.46

EL30B

30×30×5.0×5.0

0.57

EL32

32×32×4.0×4.0

0.42

EL38A

38×38×5.0×5.0

0.68

EL38B

38×38×6.4×6.4

0.85

EL45

45×45×4.8×4.8

0.75

EL50A

50×50×3.2×3.2

0.62

EL50B

50×50×6.4×6.4

1.14

EL60

60×60×9.0×9.0

1.90

EL76A

76×76×4.8×4.8

1.38

EL76B

76×76×6.4×6.4

1.77

EL76C

76×76×9.5×9.5

2.57

EL76D

76×76×12.7×12.7

3.40

EL101A

101×101×6.4×6.4

2.50

EL101B

101×101×8×8

2.95

EL101C

101×101×9.5×9.5

3.48

EL101D

101×101×12.7×12.7

4.57

EL152A

152×152×6.4×6.4

3.62

EL152B

152×152×9.5×9.5

5.42

EL152C

152×152×12.7×12.7

7.01

L40

40×22×4.0×4.0

0.45

L76

76×15×6.0×6.0

0.98

L100

100×50×6.4×6.4

1.80

L145

145×76×10×10

3.85

L170

170×76×9.5×9.5

4.40

L180

180×80×8.0×8.0

3.89

L254

254×40×6.4×6.4

3.61

L70(Special)

70×70×24×6.0

3.75

View/instance

Type

Dimension(mm)

Weight(Kg/m)

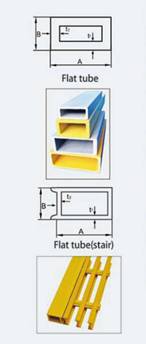

Flat tube

A×B×T₁×T₂

FT44

44×25×3.2×3.2

0.80

FT50A

51×25×3.0×3.0

0.79

FT50B

51×25×6.4×6.4

1.54

FT51A(stair)

51×25×4.0×4.0

1.01

FT51B(stair)

51×38×4.0×4.0

1.22

FT52(stair)

52×32×5.0×5.0

1.41

FT76

76×35×3.0×6.0

1.55

FT80

80×60×5.0×5.0

2.5

FT91A

91×38×4.0×4.0

1.78

FT112A

112×91×6.4×6.4

4.46

FT120

120×45×3.0×3.0

2.0

FT175

175×50×9.0×9.0

7.0

View/instance

Type

Dimension(mm)

Weight(Kg/m)

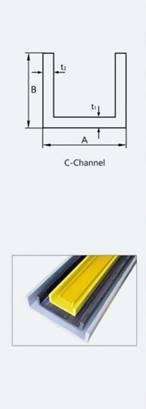

C-channel

A×B×T₁×T₂

C25

25×14×3.0×3.0

0.28

C26

26×18×3.2×3.2

0.30

C31

31×23×4.0×4.0

0.65

C32

32×13×3.0×3.0

0.25

C33

33×29×4.0×4.0

0.65

C36

36×30×4.0×4.0

0.68

C40

40×24×3.2×3.2

0.50

C45

45×28×6.4×6.4

1.07

C50

50×14×3.2×3.2

0.44

C52

52×50×6.0×6.0

1.63

C70

70×30×4.5×4.5

0.95

C75

75×35×5.0×5.0

1.37

C76A

76×22×6.4×6.4

1.31

C76B

76×38×6.4×6.4

1.70

C80

80×40×10.0×10.0

2.70

C90A

90×35×5.0×5.0

1.49

C90B

90×35×8.0×8.0

2.10

C102A

102×27×3.2×3.2

0.91

C102B

102×29×4.8×4.8

1.45

C102C

102×30×4.0×4.0

1.20

C102E

102×44×4.8×4.8

1.65

C102F

102×44×6.4×6.4

2.10

C117

117×85×5.0×5.0

2.70

C120A

120×25×5.0×5.0

1.52

C120B

120×30×5.0×5.0

1.62

C120C

120×40×5.0×5.0

1.81

C145

145×25×5.0×5.0

1.80

C150A

150×100×6.4×6.4

4.10

C150B

150×80×10.0×10.0

5.50

C152A

152×42×4.8×4.8

2.03

C152B

152×42×6.4×6.4

2.72

C152C

152×42×8.0×8.0

3.50

C152D

152×42×9.5×9.5

3.95

C152E

152×51×9.5×9.5

4.35

C160

160×48×8.0×8.0

3.70

C203A

203×56×6.4×6.4

3.68

C203B

203×56×9.5×9.5

5.34

C203C

203×102×12.7×12.7

9.20

C210A

210×55×5.0×5.0

2.95

C210B

210×80×5.0×5.0

3.42

C210C

210×85×5.0×5.0

3.52

C240A

240×72×8.0×8.0

5.70

C240B

240×115×5.0×5.0

4.40

C254

254×70×12.7×12.7

8.90

C292

292×70×12.7×12.7

9.80

C300

300×55×5.0×5.0

3.85

C310A

310×115×5.0×5.0

5.10

C381

381×90×10.0×10.0

10.5

C436

436×90×10.0×10.0

11.7

C491

491×90×12.0×12.0

14.3

C610

610×76×6.4×6.4

9.20

C902

902×100×10.0×10.0

20.6

C970

970×40×10.0×10.0

19.9

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Solid square rod

A×B

SSR25

25×25

1.23

SSR32

32×32

2.00

SSR38

38×38

2.80

Solid round rod

D

SRR60

6.0

0.08

SRR95

9.5

0.14

SRR127

12.7

0.26

SRR254

25.4

1.00

SRR328

31.8

1.51

SRR380

38.0

2.15

SRR42

4.2

0.03

SRR80

8.0

0.10

SRR16

16

0.41

SRR19

19

0.55

SRR20

20

0.62

SRR22

22

0.72

View/instance

Type

Dimension(mm)

Weight(Kg/m)

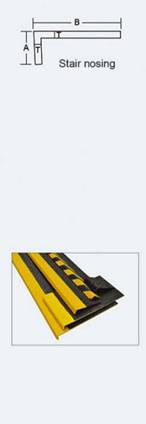

Stair nosing

A×B×T

9×70×3.2(tilted egde)

0.48

25×60×3.0

0.5

25×50×3.0(75°)

0.45

30×70×4.0(90°) (tilted egde)

0.75

30×70×3.2(90°) (tilted egde)

0.7

30×90×3.0(87°)

0.72

38×230×3.2(87°)

1.65

Round angle

38×230×3.2(90°)

1.65

40×254×6.4(87°)

3.55

50×90×3.2(90°)

0.85

50×140×3.2(90°)

1.19

55×152×3.6(87°)

1.55

50×230×3.6(87°)

2.14

50×205×3.2(90°)

1.62

55×55×3.2(87°)

0.8

55×70×3.2(87°)

0.9

30×76×3.0

0.6

30×76×4.0

0.8

25×50×3.2(87°)

0.45

25×50×4.0(87°)

0.51

25×100×3.2(87°)

0.75

Round angle

30×75×3.5(90°)

0.69

Round angle

30×100×3.2(90°)

0.8

Square angle

30×100×3.2(87°)

0.85

30×152×3.2(87°)

1.2

Round angle

30×230×3.2(90°)

1.6

Square angle

30×230×3.2(87°)

1.7

55×300×40(90°)

2.8

55×345×40(87°)

3.25

30×381×3.2(87°)

2.7

55×400×3.2

2.8

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Deck

A×T1×B×T2

305×6.4×47.5×6.4

8.5

500×5.0×48.5×6.4

12.0

500×5.0×40×5.0

9.8

Floor plate

A×T1×A2×T2×B×T3

500×6.0×450×6.0×48.5×6.0

16.4

500×6.0×450×6.0×48.5×9.0

18.5

650×13.0×550×13.0×98.5×12.0

52.5

725×4.5×675×4.5×45×4.5

17.9

A×T1×B×T2

605×3.2×28.7×5.0

5.8

View/instance

Type

Dimension(mm)

Weight(Kg/m)

FL-A 508×7.0×50.8×8.0

19.7

FL-B 635×12.0×101.6×13.0

54.6

FL-C 498×4.0×50×4.0

9.4

FL-D 500×4.0×50×5.0

9.8

50×20×4.0×4.0

0.7

55×31×3.0×3.0

0.6

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Roof Plate-A

1000×50.8×4

9.1

Roof Plate-B

750×38×2.8

5.0

View/instance

Type

Dimension(mm)

Weight(Kg/m)

Wall panel-A

450×4.5×150×6.0

18.2

Wall panel-B

1000×140×50

31.6

View/instance

Type

Dimension(mm)

Weight(Kg/m)

7 Holes Decking

600×8.5×56×8.0

25.4
