1/2" Deep x 1 1/2" Square Mesh Specifications

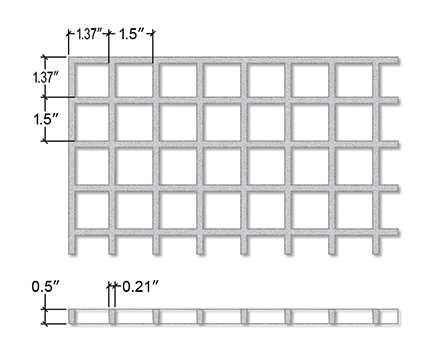

Molded Square Mesh Fiberglass Section View - 1/2 Inch Deep x 1 1/2 Inches
  Number of Bars   8

  Load Bar Width   7/32"

 Load Bar Centers   1 1/2"

  Open Area   72%

  Approximate Weight   1.33 lbs/ft2

Engineering Properties Per Foot of Width
A = .84 in2      I = .02 in4      S = .07 in3


SPAN
 		 LOAD TYPE
 		 LOAD - In LBS/FT2
50
 100
 150
 200
 250
 500
12" Uniform Load 0.03 0.05 0.08 0.10 0.13 0.26
Concentrated Line 0.04 0.08 0.12 0.17 0.21
 0.41
18" Uniform Load
 0.12
 0.24
 0.36
 0.48
 --
 --
Concentrated Line 0.13
 0.26 0.38
 0.51
 0.64
 --
24"
 Uniform Load
 0.36
 -- --
 -- --
 --
Concentrated Line
 0.29 0.57  --
 --
 --
 --
